Stroke Effects

Stroke effects modify how a stroke renders without changing its color or width; they decorate, replicate, or geometrically alter the stroke band. Pass them as the third argument to brush.addStroke(color, width, effects):

import { Brush, Dash } from "redraw";

const brush = new Brush();
brush.addStroke("#222", 8, new Dash(20, 10));

effects can be a single node or an array of them. They live in packages/redraw/src/nodes/brushes/StrokeEffect.ts.

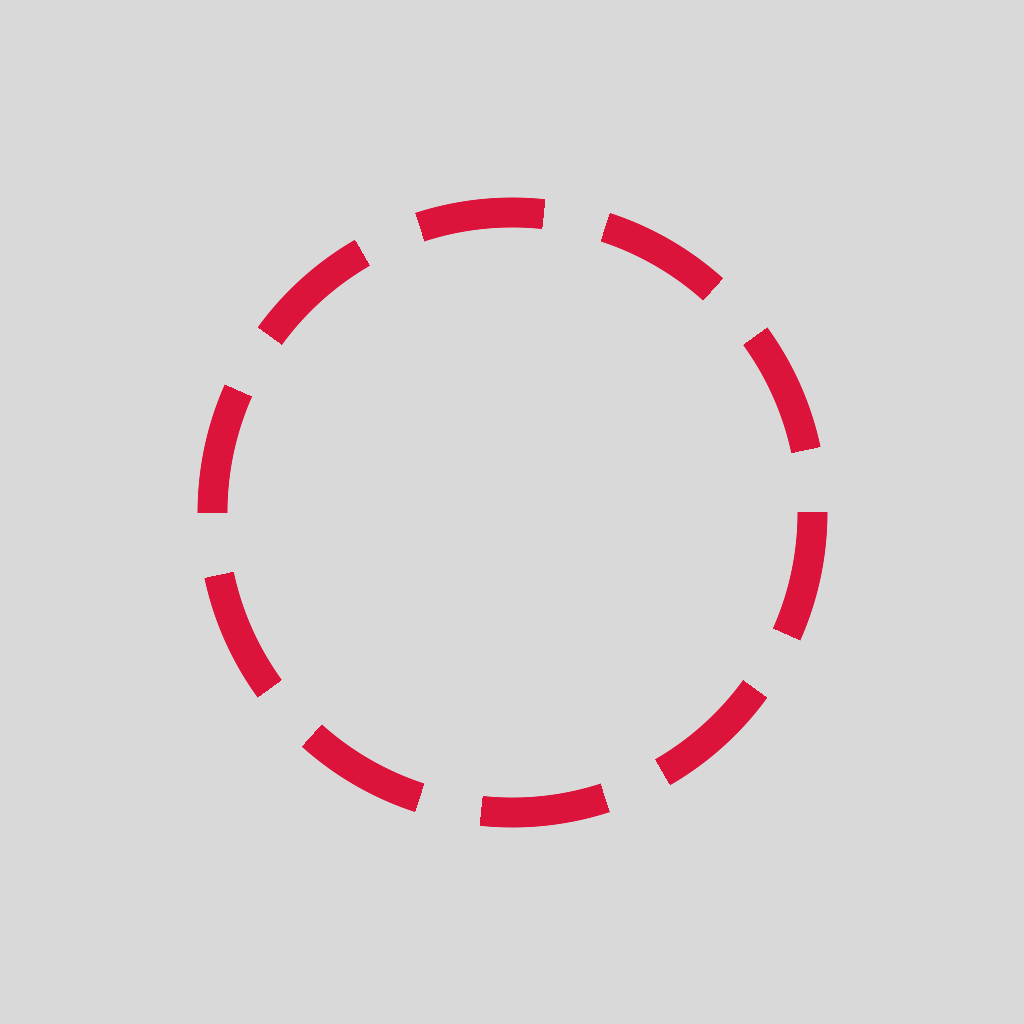

Dash

Standard dashed stroke.

new Dash(dashLength, gapLength);
new Dash(dashLength, gapLength, offset);
new Dash(dashLength, gapLength, { offset, cap, pathLength });

Param	Type	What it controls
dashLength	number	Painted segment length.
gapLength	number	Gap between segments.
offset	number (or options.offset)	Phase shift; animate to make dashes travel.
cap	"butt" | "round"	Sharp ends vs rounded.
pathLength	number	Override; used for arc-length parameterization.

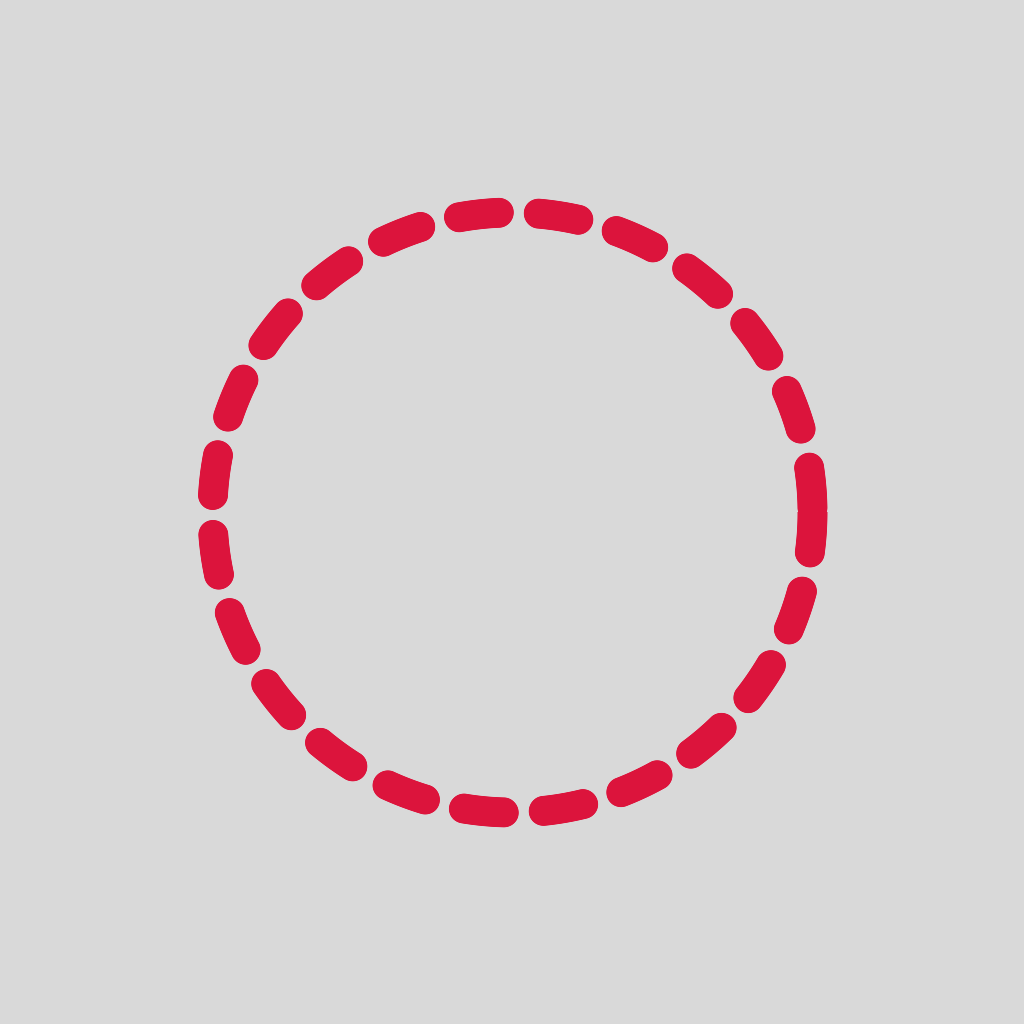

With cap: "round":

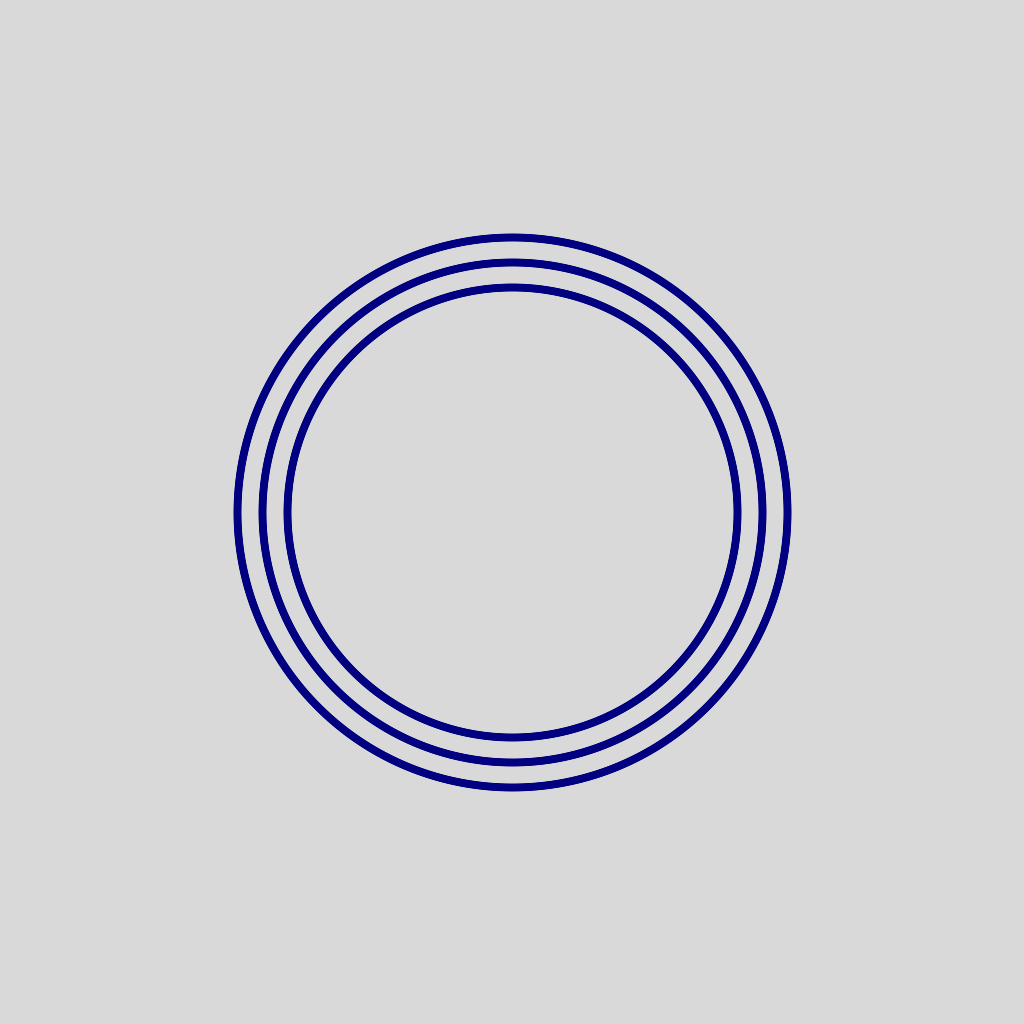

Outline

Concentric outlines around the stroke at fixed spacing.

new Outline(count, spacing, baseWidth);

Param	Type	What it controls
count	number	How many rings to emit.
spacing	number	Distance between consecutive rings.
baseWidth	number	Width of each individual ring.

InnerStroke / OuterStroke

Restrict the stroke to one side of the SDF boundary.

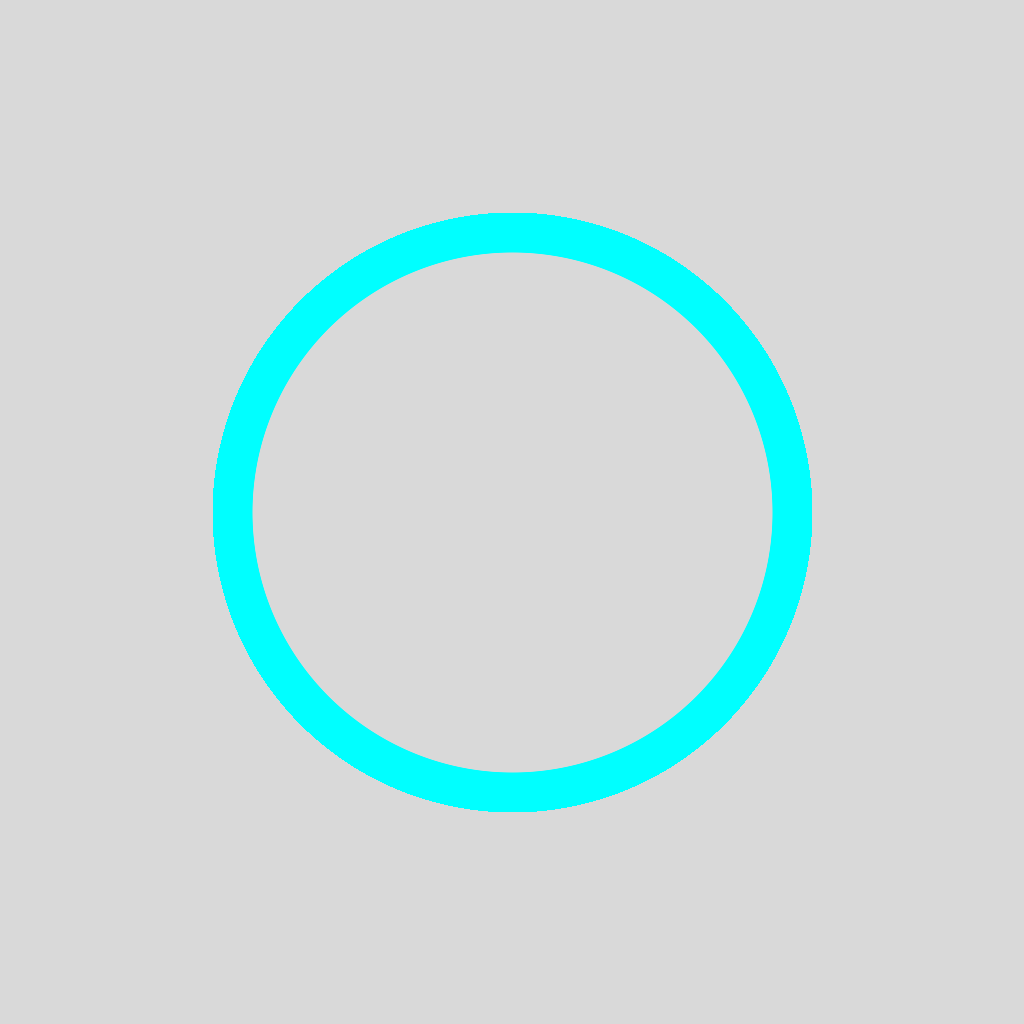

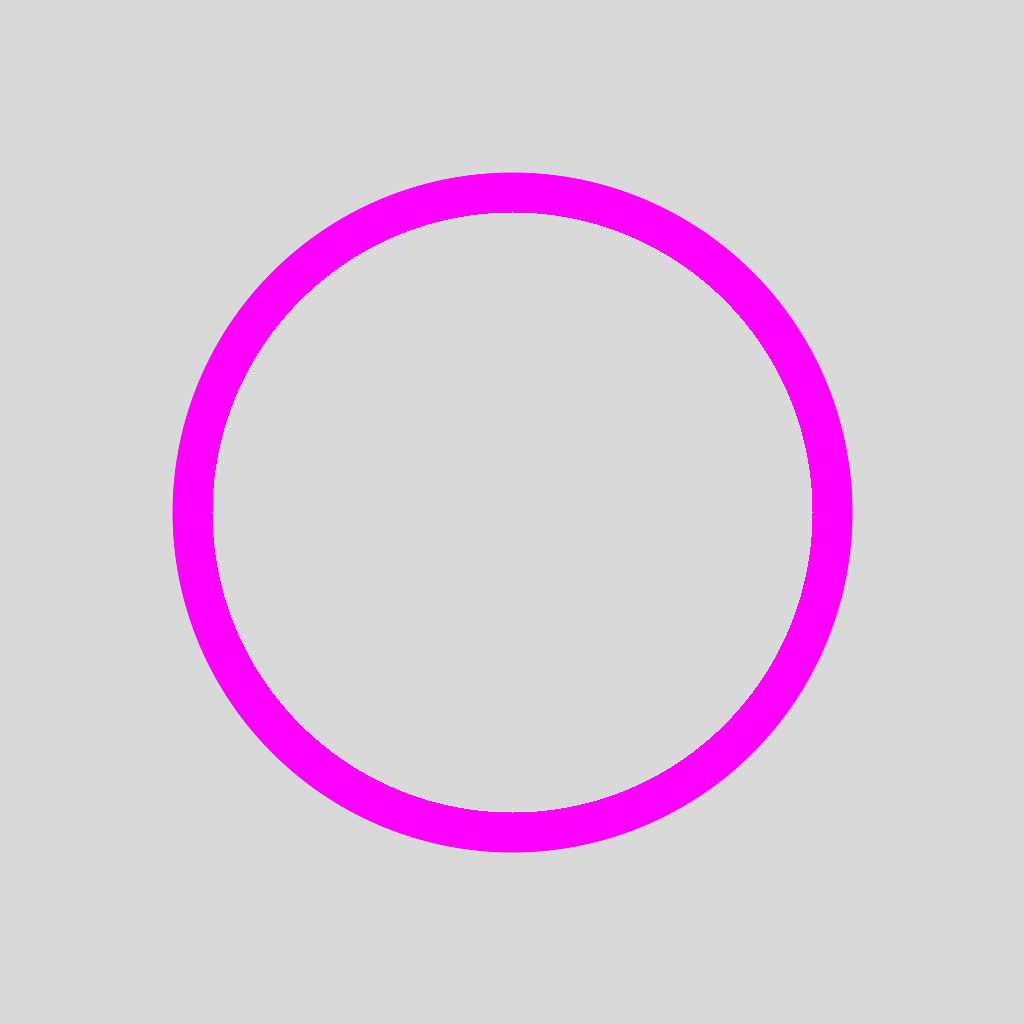

Inner	Outer

new InnerStroke(strokeWidth);   // only inside  (sdf < 0)
new OuterStroke(strokeWidth);   // only outside (sdf > 0)

Param	Type	What it controls
strokeWidth	number	Stroke band width.

OffsetStroke

Stroke offset from the boundary; positive offset pushes outward, negative inward.

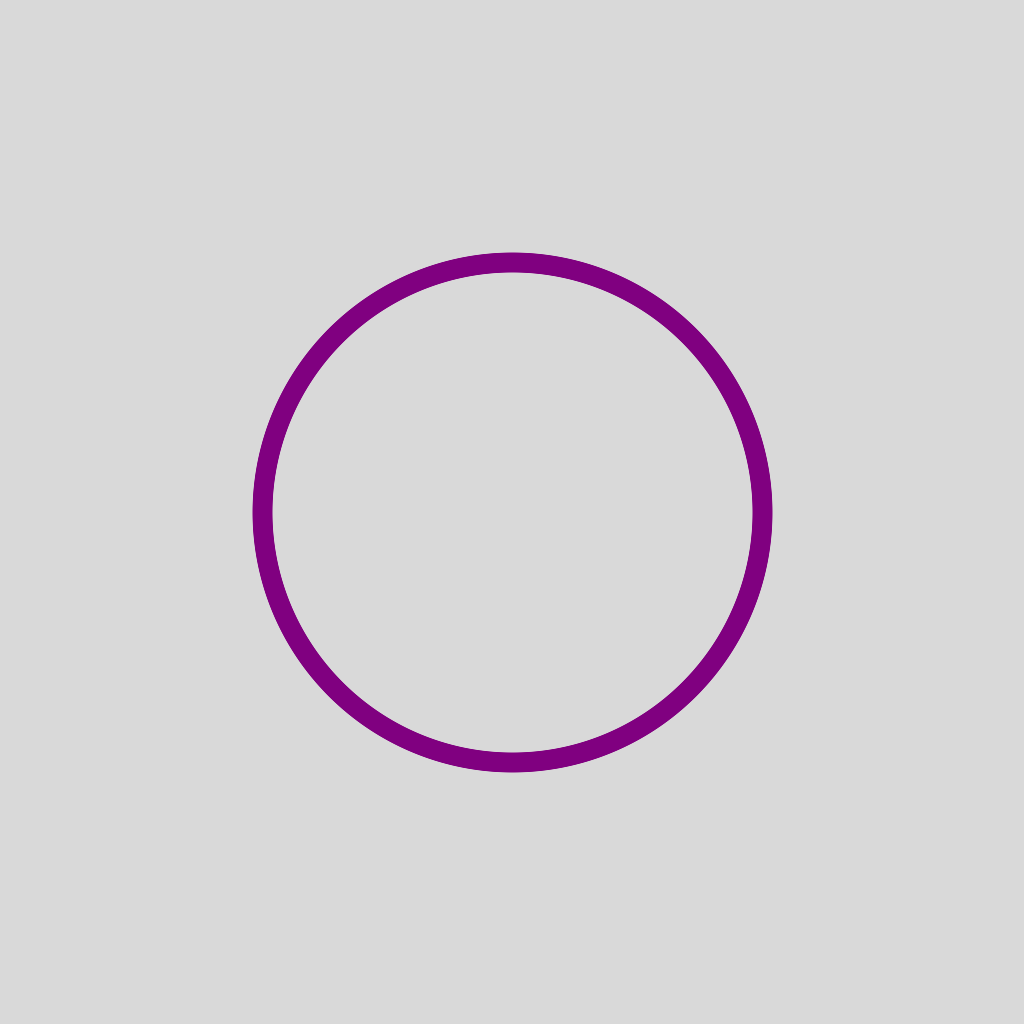

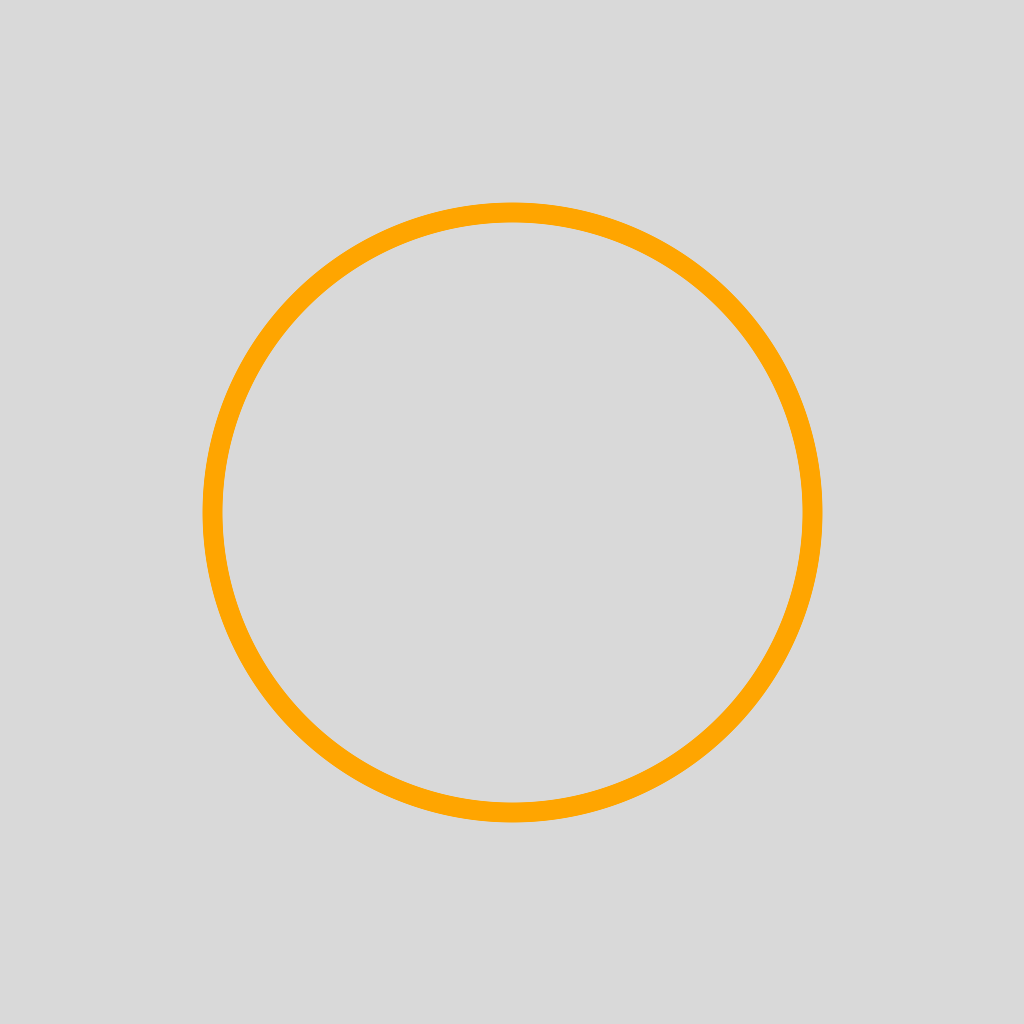

Outward (offset > 0)	Inward (offset < 0)

new OffsetStroke(strokeWidth, offset);

Param	Type	What it controls
strokeWidth	number	Stroke band width.
offset	number	Distance from the boundary; sign decides side.

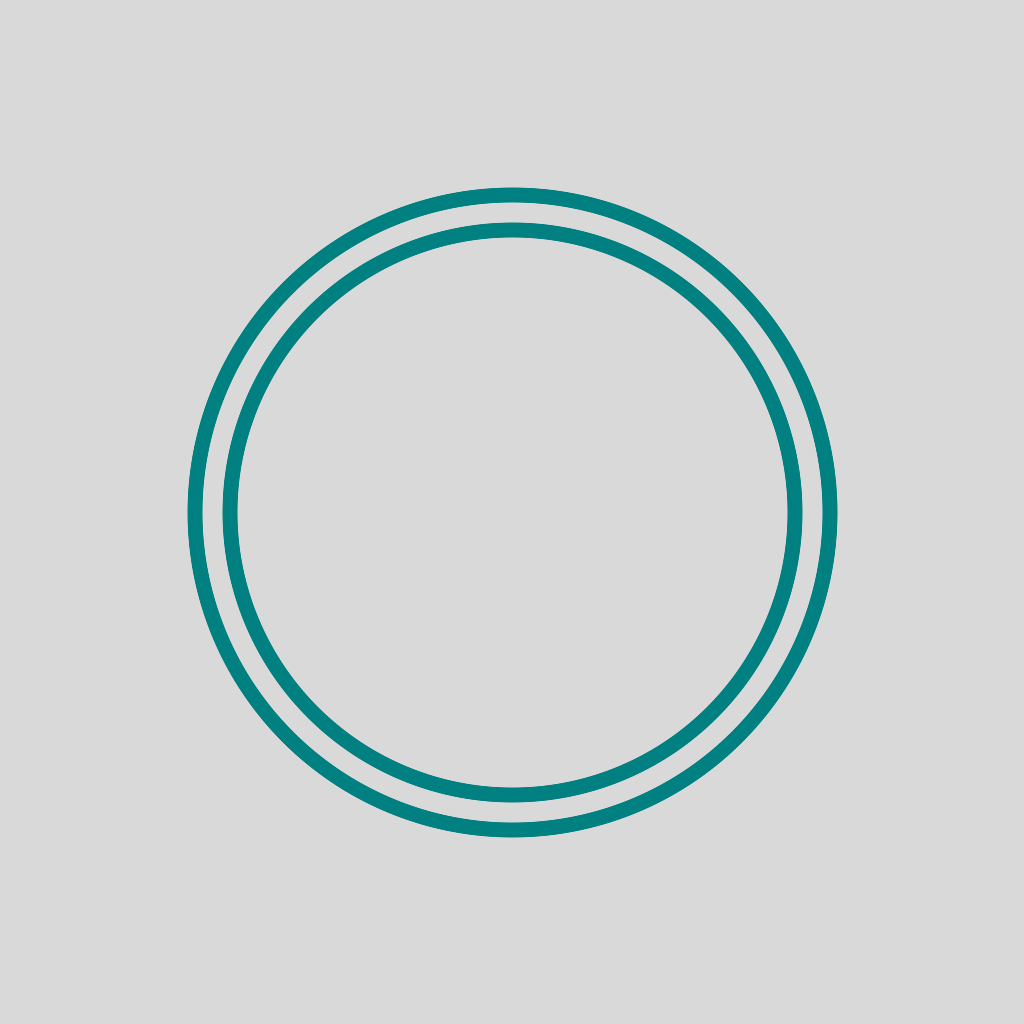

DoubleStroke

Two parallel strokes with a gap between them.

new DoubleStroke(strokeWidth, gap);

Param	Type	What it controls
strokeWidth	number	Width of each individual stroke.
gap	number	Distance between the two strokes.

Total visual width is 2 × strokeWidth + gap.

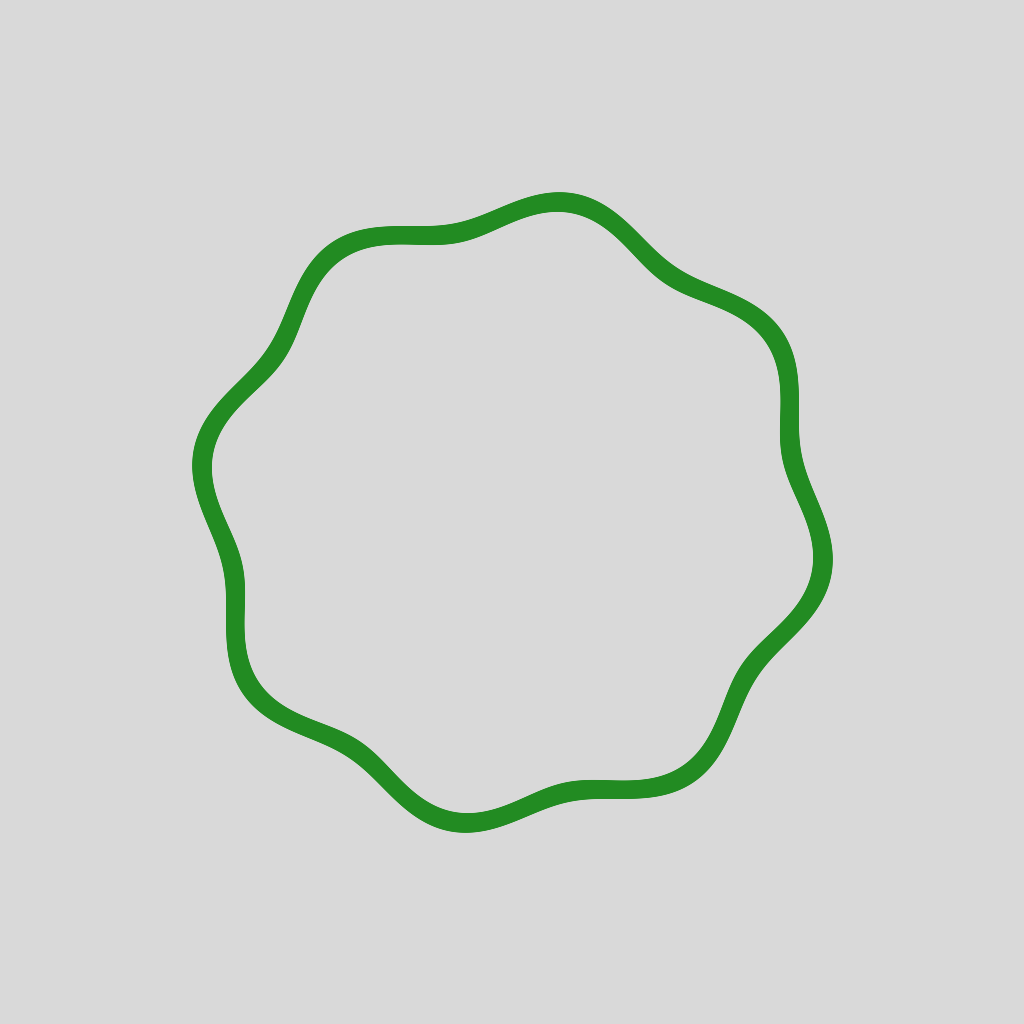

WavyStroke

Sinusoidal wobble perpendicular to the stroke. Animate phase to make the wave travel.

new WavyStroke(strokeWidth, amplitude, frequency, phase = 0);

Param	Type	What it controls
strokeWidth	number	Width of the wavy stroke band.
amplitude	number	Peak displacement perpendicular to the path.
frequency	number	Cycles per arc-length unit.
phase	number	Phase offset; animate to make the wave move.

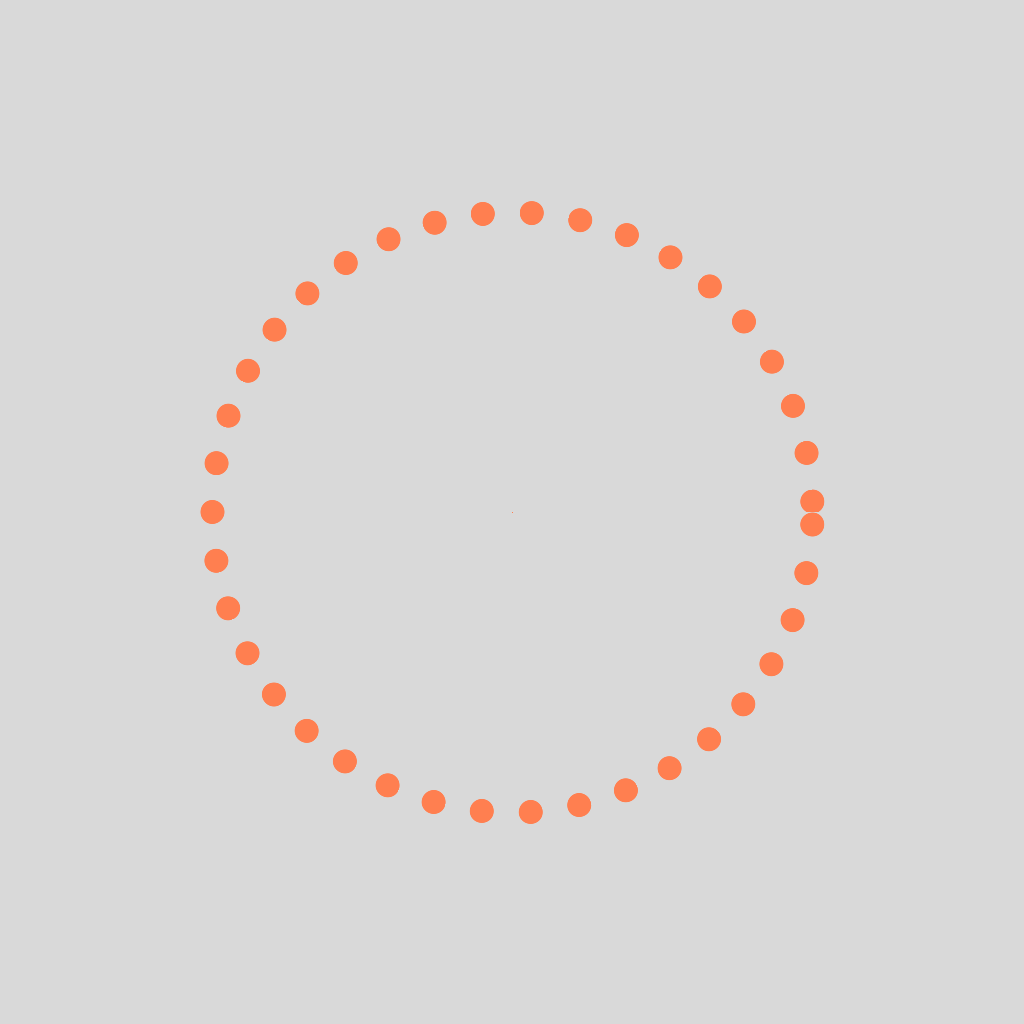

Dotted

Circular dots placed along the path at regular spacing.

new Dotted(dotRadius, spacing, pathLength, offset = 0);

Param	Type	What it controls
dotRadius	number	Radius of each dot.
spacing	number	Distance between consecutive dot centers.
pathLength	number	Total arc length, needed for parameterization.
offset	number	Phase shift; animate to make dots travel.

pathLength is mandatory because dotted spacing is in arc-length, not screen units. Get it via path.length() after fitting:

const pathGeo = fitPath(svgString, w, h);
const dotted = new Dotted(4, 12, pathGeo.length());

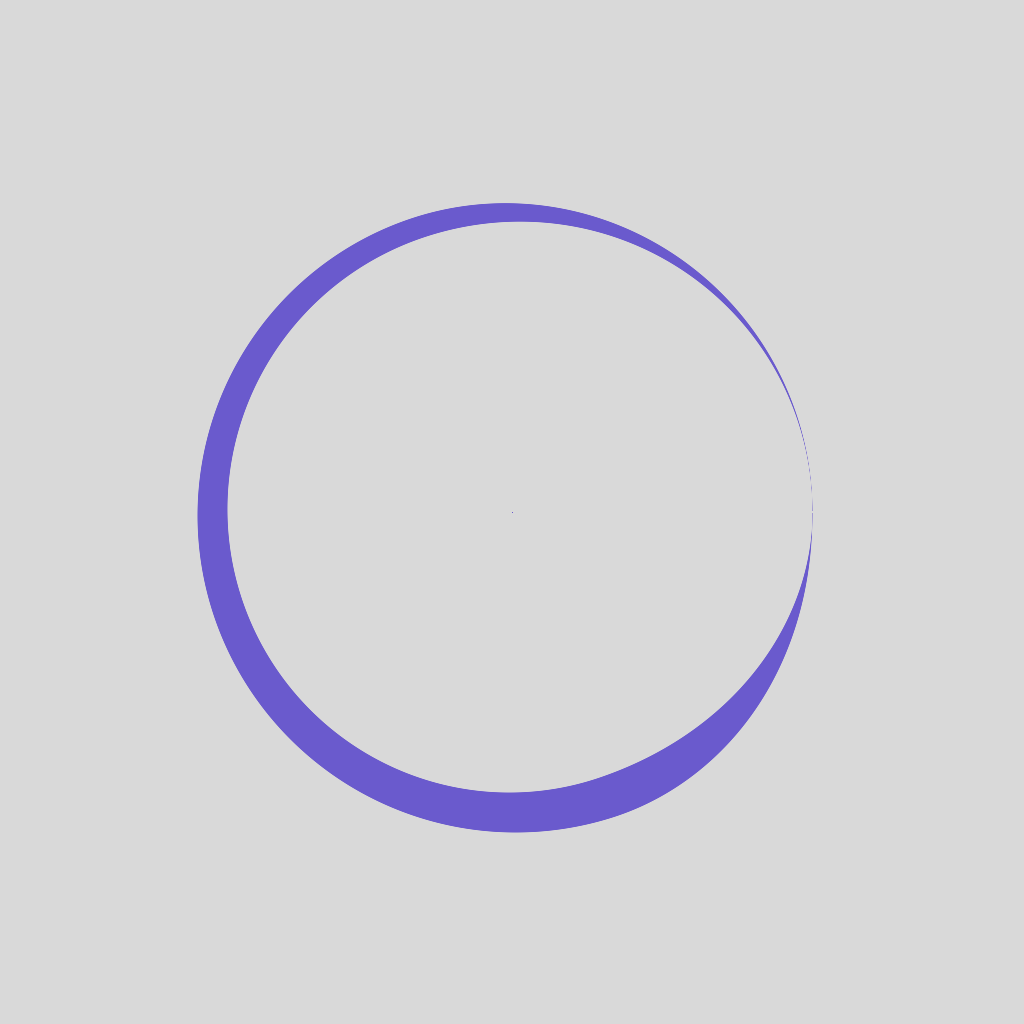

Taper

Linear width transition from startWidth to endWidth along the path.

new Taper(startWidth, endWidth, taperStart = 0, taperEnd = 0);

Param	Type	What it controls
startWidth	number	Width at ctx.t = 0.
endWidth	number	Width at ctx.t = 1.
taperStart	number	Smoothstep ramp at the start (0..1).
taperEnd	number	Smoothstep ramp at the end (0..1).

For animated tapers (a head that retracts as you draw), use the TaperedTip width preset on Stroke Widths; it pairs with path.segment(...).

Combining effects

Most effects can stack. Pass an array as the third argument:

brush.addStroke("#222", 8, [
  new Dash(20, 10),
  new Outline(2, 4, 1),
]);

Order matters; effects compose left-to-right.
